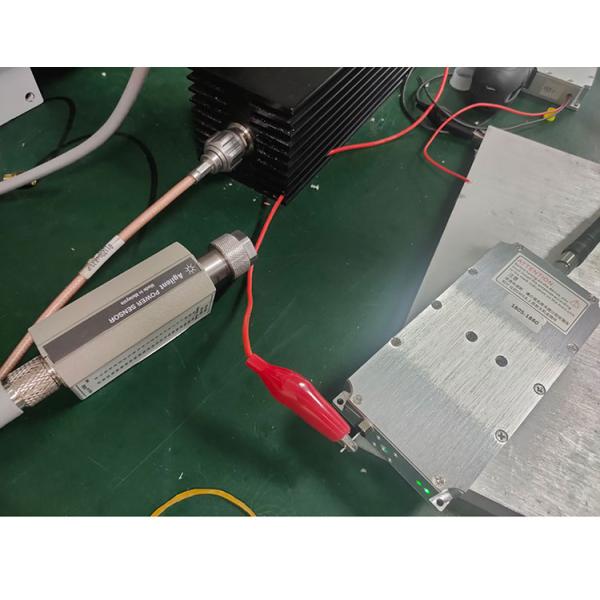

5725-5850MHz 5.8G 5W Anti Drone Signal Jammer Module
High-performance 5.8GHz signal jammer module with 5W output power, designed for anti-drone applications. Custom power options available from 10W to 100W in the same frequency band.
Technical Specifications
| Parameter |
Value |
Unit |
| Frequency Range |
5725-5850 |
MHz |
| Operating Temperature |
-10 to +75 |
℃ |
| Output Power |
5 |
W |
| Operating Voltage |
DC 24-28 |
V |
| Maximum Gain |
37 |
dB |
| Flatness |
±3 |
dB |
| Operating Current |
0.7 |
A |
| Output VSWR |
≤1.5 |
|
| Output Connector |
SMA/Female |
|
| Switch Control |
High/Low Level (0V off / 0.6V on) |
|
| Dimensions |
92*48*20 |
mm |
| Weight |
127 |
g |
Certifications
Company Profile
Chongqing Miao Yitang Technology Co., Ltd. specializes in anti-drone and unmanned intelligent defense management systems. With technical support from the AI Internet of Things Research Institute of the Chinese Academy of Sciences and collaborations with multiple intelligent AI companies, we have established research laboratories for AI unmanned field products and accumulated various technical patents.
Our products are widely applied to unmanned automatic management solutions for various defense and perimeter areas, including AI anti-drone systems and AI unmanned vehicle patrol systems. These systems integrate multiple technologies such as optoelectronics, radar, vibration, thermal imaging, facial recognition, and radio frequency management, providing 24-hour uninterrupted anti-drone defense and ground perimeter defense warning systems.
Our solutions help clients achieve cost savings, reduce human resource allocation, and ensure the safety of lives and property. The outstanding security system has earned us an excellent reputation and created higher value for our partners.
